Worm gear
Series S-1-WG
Ratio
34:1~65:1
Max Output Torque
51~696Nm
Input Torque
50~350Nm
Specifications
Worm gear - Series S-1-WG
Ratio
34:1~65:1
Max Output Torque
51~696Nm
Input Torque
50~350Nm
Connection
F05~F35
Max Stem Diameter
30~120 (9x9~27x27)
Design
GB/T12223
Gear Box Material
GGG50, WCB, LCB, LC1, CF8, CF8M, A536 65-45-12
Ingress Protection Rating
IP55, IP65, IP67, IP68
Features & Benefits

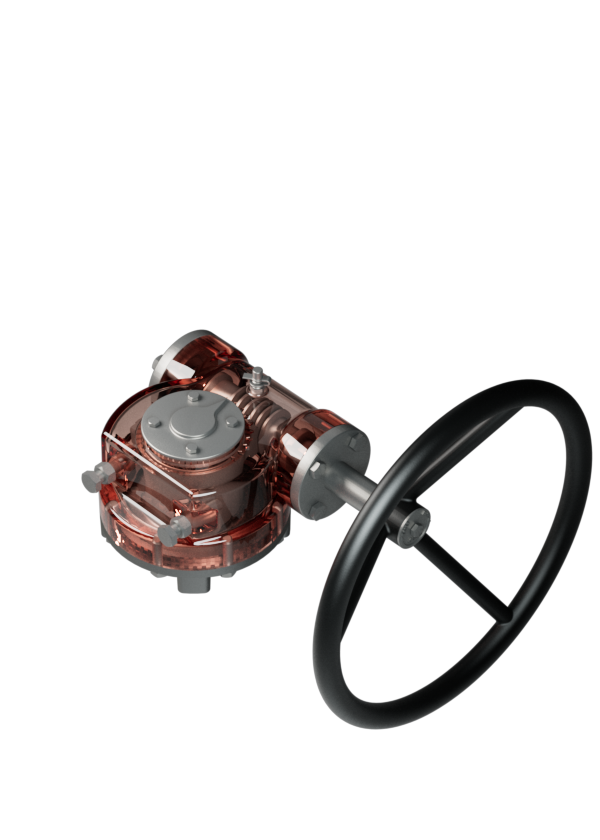

S-1-WG is quarter turn manual gear actuator. Suit to be used in butterfly valves, ball valves, plug valves etc. The gear box is made by precise casting, which has new design and nice performance. This worm gear is has self-locking structure with tapered roller bearing, so that it can be operated more flexibly with higher efficiency. The output torques can be selected according to the torques of valves. The connection adapts to ISO5211. Specially, the "Ingress Protection Rating" of this gear box can be customized IP65 / IP67 / IP68 by requirement.
