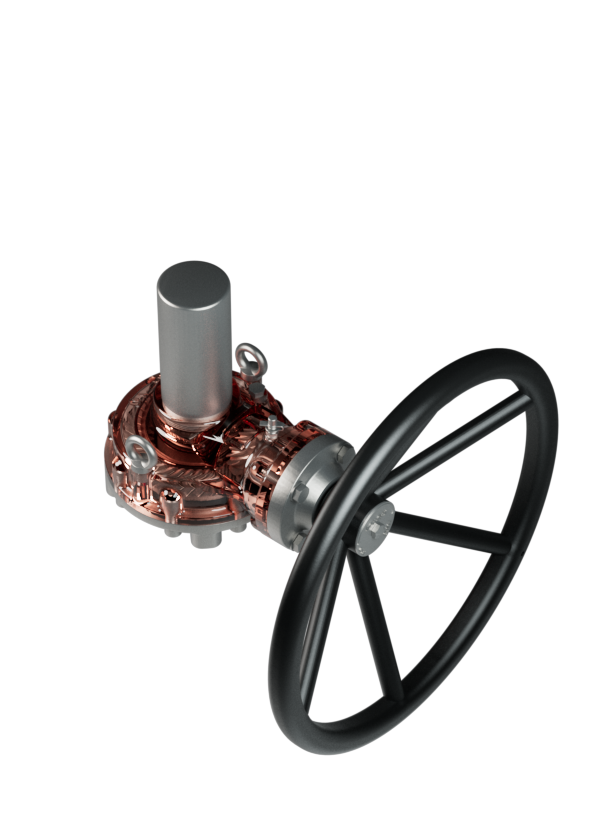

Bevel Gear
Series S-1-BG
Ratio
2.35:1~23:1
Max Output Torque
360~6000Nm
Max Thrust
43000~630000N
Specifications
Bevel Gear - Series S-1-BG
Ratio
2.35:1~23:1
Max Output Torque
360~6000Nm
Max Thrust
43000~630000N
Connection
F12~F35
Max Stem Diameter
25~110
Design
GB/T12222
Gear Box Material
GGG50, WCB, LCB, LC1, CF8, CF8M, A536 65-45-12
Ingress Protection Rating
IP55, IP65, IP67, IP68
Features & Benefits
S-1-BG is multi turn manual gear actuator. Suit to be used in gate valves, knife gate valves, globe valve etc. By using spiral bevel gears and thrust bearing, this serie can run smoothly, wih high output torque and high efficiency. Handwheel and stem protection cover can be customized. The connection adapts to ISO5211. Specially, the "Ingress Protection Rating" of this gear box can be customized IP65 / IP67 / IP68 by requirement.
