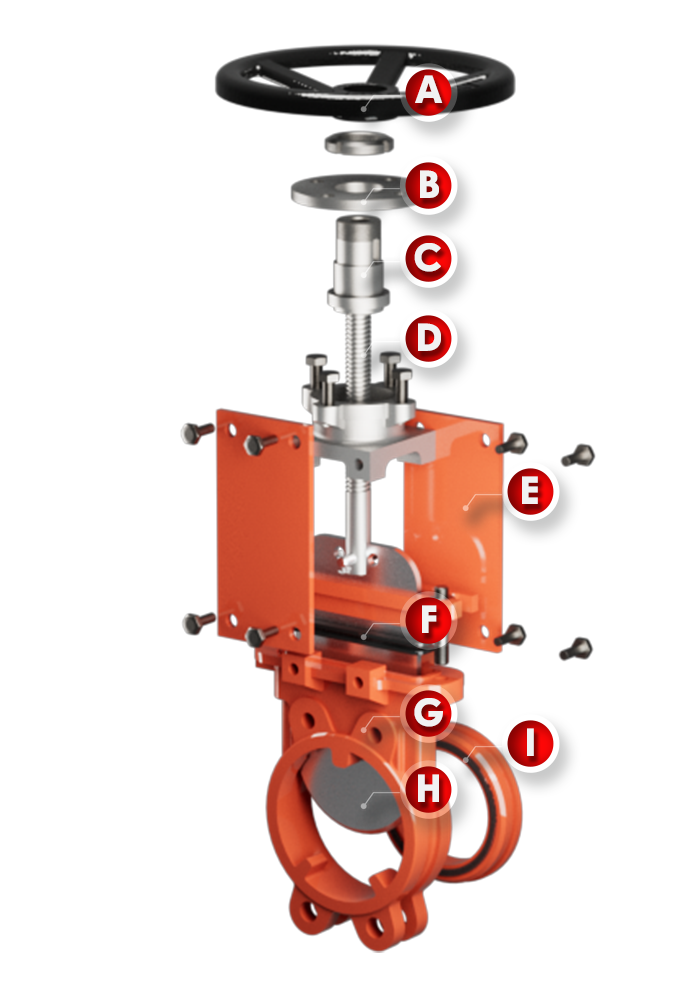

The ductile iron handwheel is more durable. The right size makes the handwheel rotate more labor-saving.

Platform under actuator can be customized according to requirements., which allows to install electric/pneumatic actuators by different standards.

The stem bushing acts as a support for the handwheel and drives the stem to rotate through the internal thread to lift the disc. Bronze and steel can be selected by requirements.

Different materials can be selected according to the working conditions. Hardness and corrosion resistance are the primary considerations.

The yoke is composed of thickened steel plates, which is enough to support the disc, platform, and actuator.

Rubber and nylon packing material can effectively enhance the sealing between the gland and disc. Different materials can be selected according to the medium.

The body is one-piece structure with wafer or lug style. Polyester is coated for excellent corrosion resistance. Shorter length greatly reduces production and maintenance costs of the valve. Different materials can be selected according to the working condition.

The polishing and chamfering design of the disc does not damage the seat. Different materials can be selected according to the medium.

O-shaped valve seat is unidirectionally or bidirectionally sealed, and can be replaced in case of damage. Different materials can be selected according to the medium.
